150~1500Lb Swing Check Valve

TEL: 139 0577 7788

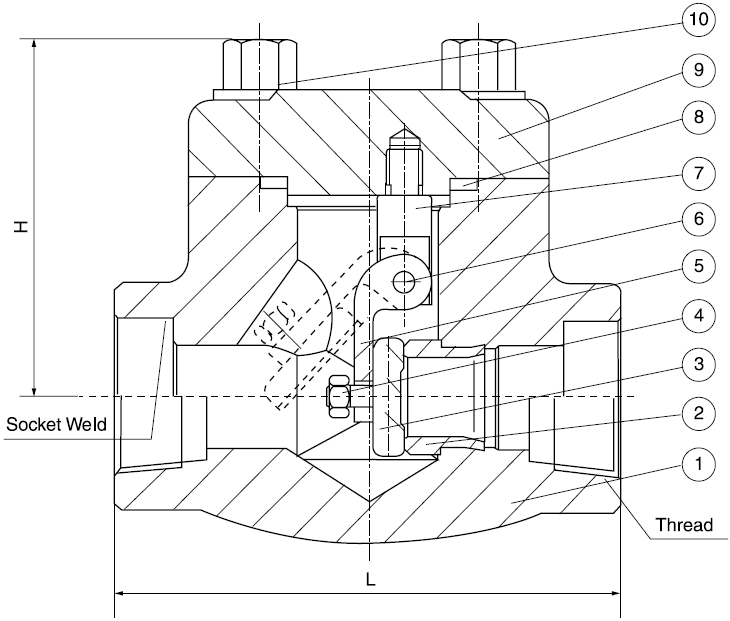

Outline Drawing

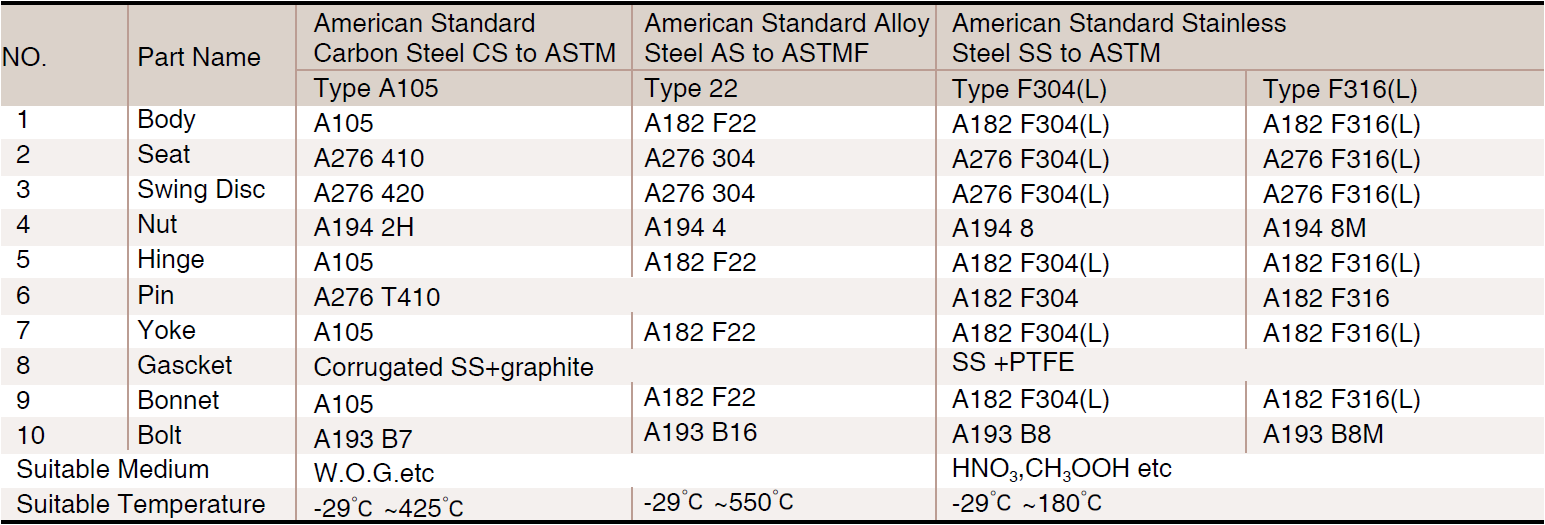

Standard Material Specifications

Note:Other materials are available upon request.

CS=Carbon Steel;AS=Alloy Steel;SS=Stainless Steel;

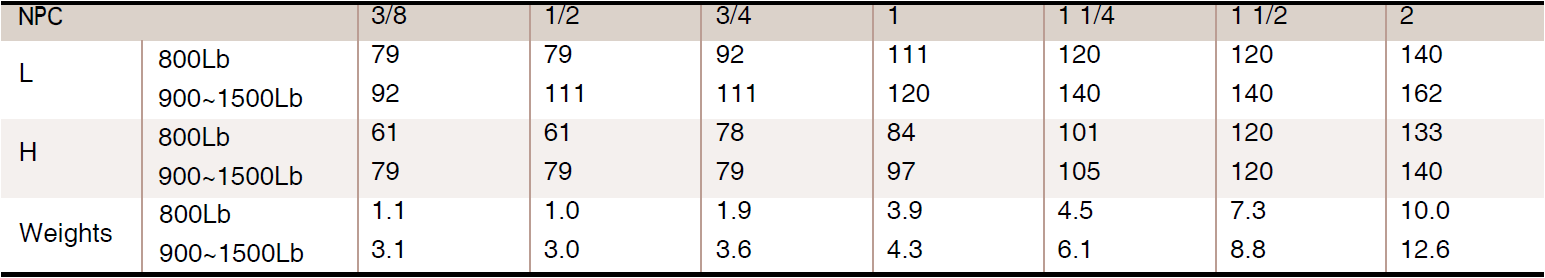

Dimensions(mm)and Weights(Kg)
